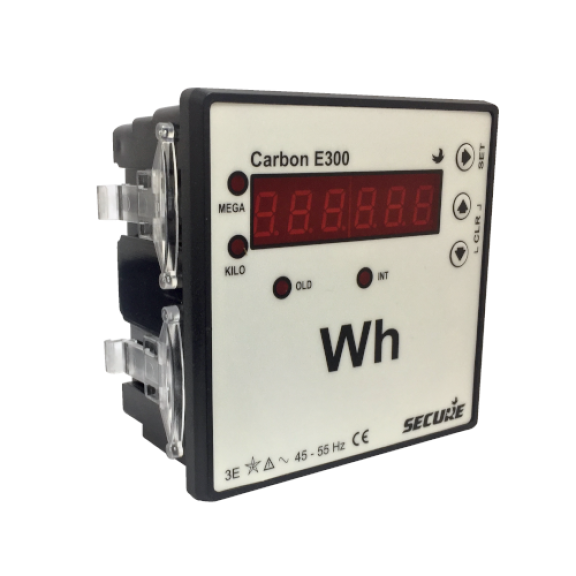

Secure Carbon E300 Three Phase Panel Meter with Pulse Output

  • Single function DIN96
  • Shallow depth (45mm), plastic enclosure
  • Singleline LED display
  • Star/Delta Programmable
  • Universal Auxillary Supply (80-300VAC)
  • PT/CT ratio programmable including CT Secondary
  • Clearance and Creepage according to UL 508 Standard
  • Voltage input (415V P-P) and Current Input (1/5A)
  • 'OLD' register for storing cleared energy


Enquire Now

Product Details

Carbon E300 is a three phase digital kWh panel meter with pulsed output. The unit has a 96mm Bezel, and is best suited for industrial applications.

Product Specification

Electrical:

  • Aux. power supply: 80-300 VAC or24 V DC measuring
  • Range:0-415 V (P-P), 5A
  • Input range: 240V AC/5A

Mechanical:

  • Enclosure material: Poly Carbonate
  • Bezel size: 96x96mm
  • Panel cut out size: 92x92mm
  • Weight: < 650g
  • Connectors: Strip type connectors

Environmental:

  • Operating temperature: 0-60°C
  • Storage temperature: 25-70°C
  • Relative humidity: 0-95% Non condensing
  • Temperature coefficient: 0.01%
  • Measurement category: III
  • Pollution degree: II
  • Class of Accuracy: 1.0
