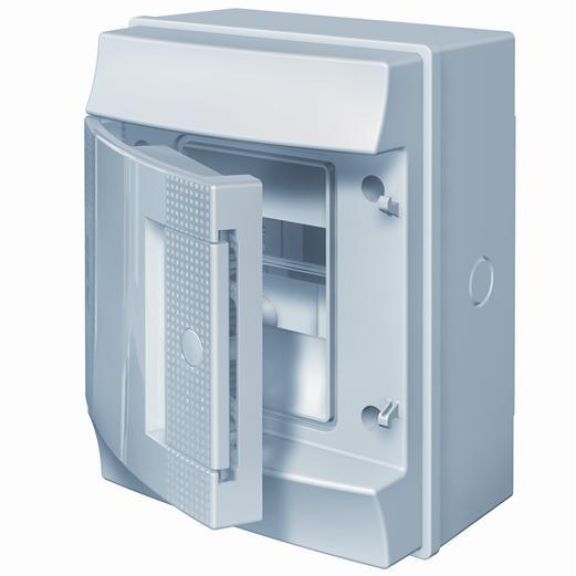

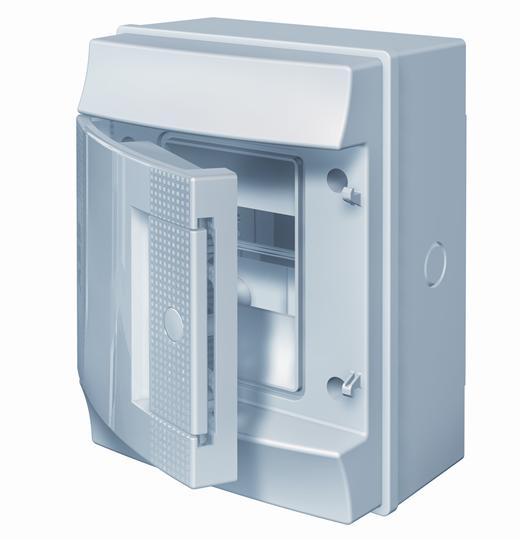

ABB Mistral 65 Double Insulated Enclosure Series (4 Modules, 8 Modules and 12 Modules)
- Halogen free (version GWT 650°C)
- High mechanical strength: IK09
- High insulation protection degree: IP65
- Blind door RAL 7035 Transparent door “blue petrol”
- Door available in 2 different finishing, reversible and with opening up to 180°
Product Details
MISTRAL65 is the ABB’s most innovative series of IP65 rated consumer units. Designed to reduce cabling times as well as allow total integration between modular DIN-rail MCBs, MCCBs and front panel devices.
Mistral 65 Enclosure Series (Available ex-stock):
- Mistral 65 4-Modular Enclosure (Dimensions: Width 152mm, Height 202mm and Depth 117mm)
- Mistral 65 8-Modular Enclosure (Dimensions: Width 232mm, Height 250mm and Depth 154mm)
- Mistral 65 12-Modular Enclosure (Dimensions: Width 320mm, Height 250mm and Depth 155mm)
Product Specification
- Mounting Type: Wall Mounting
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-01-01
- IP65 Protection
- Dimensions: Width 152mm, Height 202mm and Depth 117mm
- DIN Place Unit: 4 Module
- Protection Class: Isolated
